ABB Motors
Standard TEFC Three Phase Motors
Frame sizes :
71 to 355
Output range :
0.75 to 355 KW
Poles :
2 to 8 poles
Voltage :
415 V 50 Hz
Totally new design with extensive features and benefits
1) Prepared for a wide range of variant codes – meets numerous types of applications
2) High efficiency – low running costs and an environmentally friendly motor
3) Permanently greased bearings
4) Improved mechanical and electrical design – longer lifetime
5) Foot-mounted motors have fixed feet
6) Bigger terminal box which allows a fast connection and easy installation
7) Improved surface treatment and painting to bear heavy environmental conditions
Send Enquiry
Bonfiglioli
Helical-bevel Gearmotors
Torque Range :
100 Nm... 14.000 Nm
Mechanical Rating (n1= 1400 min-1) :
0,22 ... 150 kW
Gear ratios:
5,4 ... 1715
When efficiency and versatility meet each other
The A series is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.
Send Enquiry
Helical Gearmotors
Torque Range :
45 Nm... 12.000 Nm
Mechanical Rating (n1= 1400 min-1) :
0,08 kW ... 213 kW
Gear ratios:
2,6 ... 1481
When Customers benefit from the know-how developed over the years
Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.
Send Enquiry
Shaft mounted Gearmotors
Torque Range :
140 Nm.. 14.000 Nm
Mechanical Rating (n1= 1400 min-1) :
0,17 ... 125 kW
Gear ratios:
6,4 ... 2099
Ruggedness and effectiveness to the state-of-the-art
No better, easier and neater installation than with a shaft mounted unit of the F series. Lightweight and performing, an F unit is the dependable drive for all the material handling applications.
Send Enquiry
TA - series Shaft mounted
Torque Range :
150 Nm ... 16.000 Nm
Mechanical Rating (n1= 1400 min-1) :
1,1 kW ... 156 kW
Gear ratios:
5,0 ... 31,5
The sturdy and wheather-resistant product for the material handling industry
The TA series has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.
Send Enquiry
VF/W - Universal Worm
Torque Range :
13 Nm... 7.100 Nm
Mechanical Rating (n1= 1400 min-1) :
0,04 ... 75 kW
Gear ratios:
7 ... 10000
A smart design enhanced by latest materials technology and advanced manufacturing
Bonfiglioli worm gears are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.
Send Enquiry
300 - Planetary drives
Torque Range :
1000 ... 1287000 Nm
Mechanical Rating (n1= 1400 min-1) :
up to 450 kW
Gear ratios:
3.4 ... 5234
The powerful solution to all heavy duty drive problems
Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 18 finely spaced frame sizes, spanning over the 1.000 - 1.400.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.
Send Enquiry
V - Mechanical Speed Variators
Max. to Min. Speed Setting:
5.2 times
∞ Reduction through a differential unit
Mechanical Rating (n1= 1400 min-1) :
0,18 kW ... 9,2 kW
Additional Helical Reduction :
iN = 2,5 ... 6,3
Reengineering conventional products to draw the best out of them
The renovated V series features a brand new speed setting mechanism that optimizes the operation, extending the lifetime of the core parts, and allowing the speed variator to run cooler and smoother than ever before. Also available with the additional helical reduction and in combination with most Bonfiglioli gears.
Send Enquiry
BC-DC Motors
Torque Range:
0.3 Nm ... 4.5 Nm
Speed :
1500, 2000, 3000 min-1
Supply :
12, 24, 36, 48,65, 110, 180, Vdc
Configurations :
IM B5 and IM B14 Flange Mount
Ventilation
BC110 ... BC140 non-ventilated BC220 ... BC310 TEFC
A comprehensive range of permanent magnet DC motors
The motors of the BC series are the simple, proven and economical solution to the requirements of DC drives. The materials and the design concepts exploited allow the use of BC motors under the severest duty and with 4-quadrants thyristor converters. Motors can be operated in the –20 to +40 °C temperature range and are IP54 protected and class F isolated.
Send Enquiry
Elecon
Spiral-Bevel Helical Gear Units
Frame sizes :
71 to 132
Output range :
0.75 to 9.3 KW
Poles :
2 to 8 poles
Voltage :
415 V 50 Hz
Totally new design with extensive features and benefits
Send Enquiry

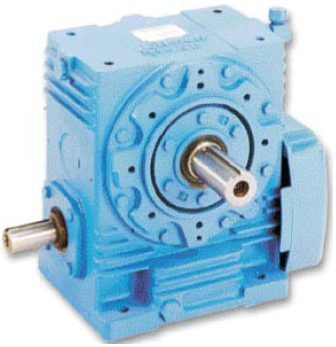

Super NU Series in Worm gear
sizes :
1(5/8), 1(3/4), 2, 2(1/4), 3, 3(1/2), 4, 5, 6, 7, 8, 9, 10.5
Ratio :
Min. 5 : 1 to Max. 70 : 1
Power capacity :
139 KW
Totally new design with extensive features and benefits
Elecon single reduction gear units are the result of many years of experience. Completely re-designed gear case with liberal ribbing increases heat dissipating area, streamlined sump carrying more oil and larger capacity of fan enhance the thermal rating of the gearbox. All this means that the continuous load carrying capacity is increased without substantial rise in temperature. No more opening of gearbox for hand changing, just replace the fan and fancowl from one end to other end of worm shaft.
Send Enquiry
Premium
Altra Gear Box
Range :
Power range from 0.06 KW to 7.5 KW
Ratio range from 7.5 / 1 upto 100 / 1
Sizes :
Centre Distance from 30 mm upto 130 mm
Type:
Worm-Available in Foot & Flange mounted versions
Applications:
Conveyors, Packaging, Loading, Automation
Industries:
Material Handling, Pharma, Packaging, Food Processing etc.
Premium 'AL' series greaves gearboxes are manufactured with high quality material and modern design in order to guarantee the maximum reliability and life. Housing, flanges and feet are made out of aluminium alloy upto size 090 and for sizes 110 and above cast iron is used. Worm shafts are made of steel and are case hardened to 58-60 HRC and profile ground.
Lubrication of Gearboxes :
Gearboxes are supplied filled with synthetic oil grade ISO VG 320 which is virtually maintenance free and does not require oil change
Send Enquiry
